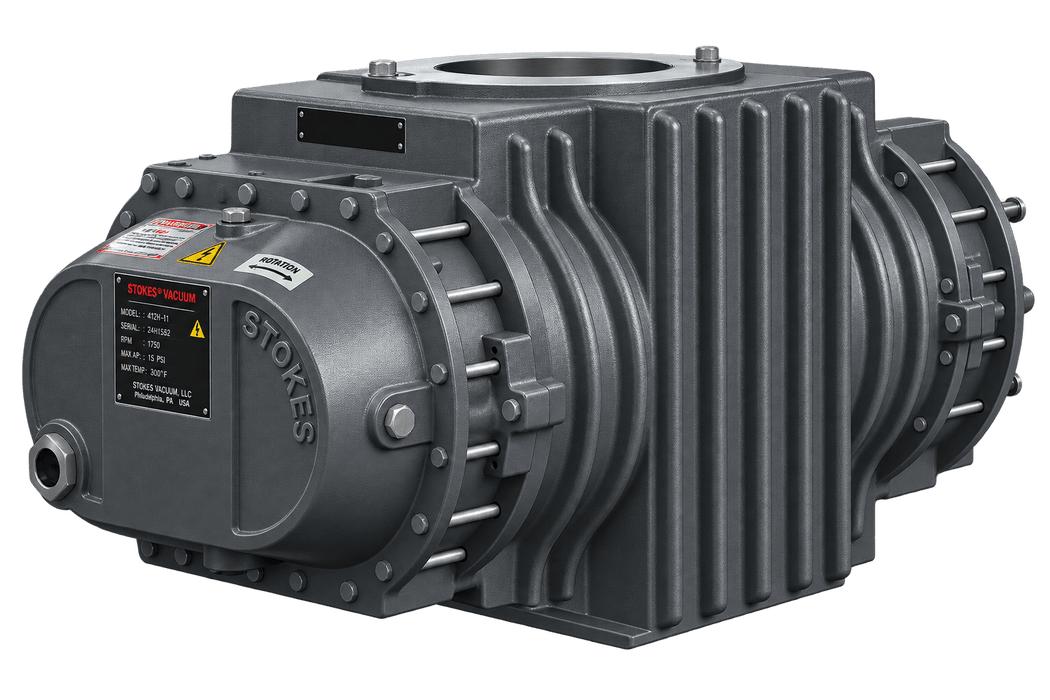

Edwards Vacuum Stokes 622 Vertical Vacuum Blower (Certified Refurbished)
Stokes 622 Mechanical Booster
The Stokes 622 Mechanical Booster is a high-capacity positive-displacement vacuum booster designed to work in conjunction with a backing pump to dramatically increase pumping speed and improve evacuation performance. Its rugged six-inch-class design uses dynamically balanced rotary lobes and is intended for demanding industrial vacuum applications.
The 622 is available in horizontal-flow and vertical-flow configurations, with mechanical-seal and process-isolation versions. It can operate at speeds up to 3,600 RPM and is available with approximately 25 HP of drive power. Stokes/Edwards lists the 622 at up to 6,630 m³/hr (3,900 CFM) nominal displacement at 3,600 RPM
|
Specification |
Stokes 622 |
|---|---|
|
Type |
Mechanical booster / Roots blower |
|
Inlet flange |
8” ASA/ANSI |
|
Outlet flange |
8” ASA/ANSI |
|
Nominal displacement @ 1,800 RPM |
3,000 CFM |
|
Nominal displacement @ 2,750 RPM |
~2,350 CFM* |
|
Nominal displacement @ 3,600 RPM |
3,900 CFM |
|
Max pressure differential |
250 Torr / 333 mbar |
|
Typical motor |
25 HP |
|
Motor |
3-phase |
|
Cooling |
Air cooled |
|
Noise |
<82 dB(A) |
|
Configuration |
Horizontal-flow or vertical-flow |
|
Seal options |
Mechanical seal / process isolation |
|
Lubrication |
Oil-lubricated timing gear/bearing system |
