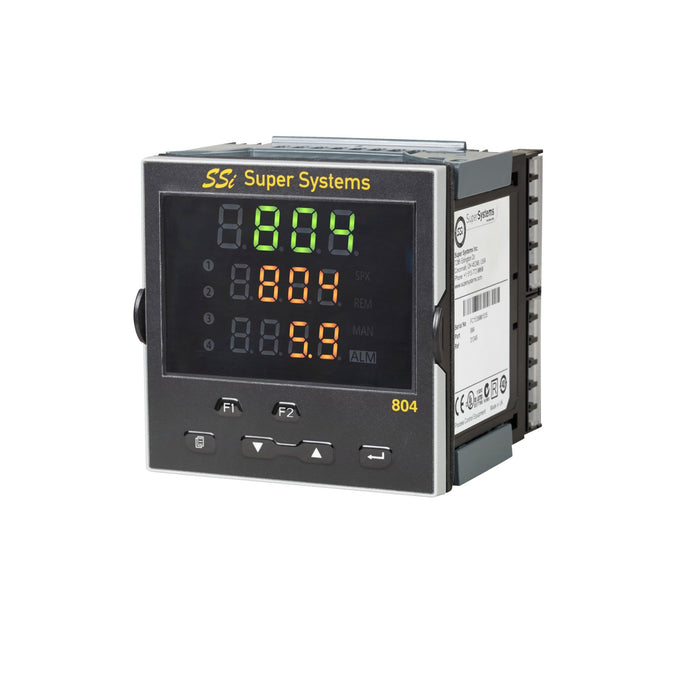

Super Systems Inc. Series 8 Model Temperature 804 Controller
-
This Unit Directly replaces & the Honeywell UDC2800 of any configuration
- 1/4" Din
- FM Approval
- Built-In Timers (808, 808SR, 816, 804 Models)
- Configurable Alarms: High, Low, Deviation, Band, Timer Complete
- Auto-Tuning, Smart Tuning
- Modbus 485 Comms
- 3 Configurable Relay Outputs
- 4-20mA Output (Models 804, 808)
- 24 V transmitter/supply (Models 804, 808)
- 3 sizes: 1/4 DIN, 1/8 DIN, 1/16 DIN
- FM Approved, UL Listed, and CE Marked
- Designed to combine temperature and timer operation for a temper/draw furnace
- Easy-to-use logic inputs for push button operation of timer
- Automatically download set point and time from SCADA software
- Calibration Accuracy: <±0.25% of reading ±1LSD
- Thermocouple Types: K, J, N, R, S, B, L, T, C Custom, RTD, and linear V and mA
- Series 8 Configuration Software
